BB3000 LINE BORING MACHINE
Optimal power-to-weight ratio assures superior speed and performance. Compact design and mounting brackets easily adapt to a wide range of configurations to maximize application versatility.Specifications:
Bar Diameter: 1.25 inches (31.8 mm)Boring Diameter: 1.5 – 5 inches (38.1 – 127 mm)
Max. Stroke: 10 inches (254 mm)
Torque at Bar: 40 ft-lb (54.2 N•m)
Power Option: Electric
BB4500 line boring machine
This line boring machine is an even more compact and affordable version of our top-selling, with the mounting flexibility needed for work in restrictive spaces. A variety of motor and bar options add power to this outstanding value.Specifications:
Bar Diameter: 1.75 inches (44.5 mm) 1.25 inches (31.8 mm) optionalBoring Diameter: 1.5 – 10 inches (38.1 – 254 mm)
Max. Stroke: 36 inches (914.4 mm)
Torque at Bar: 417 ft-lb hydraulic (565.4 N•m)
Power Option: Electric, Pneumatic, or Hydraulic
BB5000 LINE BORING MACHINE
is the most compact, versatile and powerful line boring machine in its class. Easy to set up, designed to make quick work of tough jobs in spaces too restrictive for most boring machines. Easily configured for difficult machining applications.Specifications:
Bar Diameter: 2.25 inches (57.2 mm) 1.25 inches (31.8 mm) optionalBoring Diameter: 1.5 – 24 inches (38.1 – 609.6 mm)
Max. Stroke: 36 inches (914.4 mm)
Torque at Bar: 417 ft-lb hydraulic (565.4 N•m)
Power Option: Electric, Pneumatic, or Hydraulic
BB5500 COUPLING BORING MACHINE
is the Most suitable for turbine coupling applications. Easy to set up, designed to make quick work of tough jobs in spaces too restrictive for most boring machines. Extremely rigid system provides exceptional precision for accurate fitting of coupling bolts.Specifications:
Bar Diameter: 2.5 inches (63.5 mm) 1.875 inches (47.6 mm) optionalBoring Diameter: 2.1 – 4.2 inches (53.3 – 106.7 mm)
Max. Stroke: length of bar
Torque at Bar: 65 ft-lb (88.1 N•m)
Power Option: Pneumatic or Hydraulic
BB6100 LINE BORING MACHINE
The most compact in our line of traveling head portable line boring machines. Combines powerful performance with flexible setup to meet an exceptionally wide range of application and boring diameter needs.Specifications:
Bar Diameter: 3.5 inches (88.9 mm)Boring Diameter: 8.8 – 40.8 inches (223.5 – 1036.3 mm)
Max. Stroke: length of bar
Torque at Bar: 470 – 1820 ft-lb (637.2 – 2467.6 N•m)
Power Option: Hydraulic
BB7100 LINE BORING MACHINE
This line boring machine is designed to enable boring strokes limited only by the length of the bar, with plenty of power to tackle big jobs. Three different bearing support assemblies maximize versatility..Specifications:
Bar Diameter: 5 inches (127 mm)Boring Diameter: 10.25 – 58.25 inches (260.4 – 1479.6 mm)
Max. Stroke: length of bar
Torque at Bar: 750 – 2900 ft-lb (1020 – 3930 N•m)
Power Option: Hydraulic
BB8100 LINE BORING MACHINE
The model of versatility, this line boring machine offers easy, flexible setup, a high power-to-weight ratio, and high-speed operation to boost productivity. Adaptable to a huge range of bore diameters, from 14.5 to 85.6 inches (368.3 – 2174.2 mm).Specifications:
Bar Diameter: 8 inches (203.2 mm)Boring Diameter: 14.5 – 85.6 inches (368.3 – 2174.2 mm)
Max. Stroke: length of bar
Torque at Bar: 3350 – 6068 ft-lb (4542 – 8227 N•m)
Power Option: Hydraulic
BW1000 Auto Bore Welder
automated spiral welding system gives you a moderate bore welding system.Excellent bore welding innovation is presently accessible in a roughly developed, exceptionally convenient and effectively reasonable bundle. Presently you can:
- Increase production of both your welding and machining.
- Extend the functioning existence of your capital equipment.
- Repair equipment nearby Maximize equipment uptime.
- Dramatically diminish fix time and expenses.

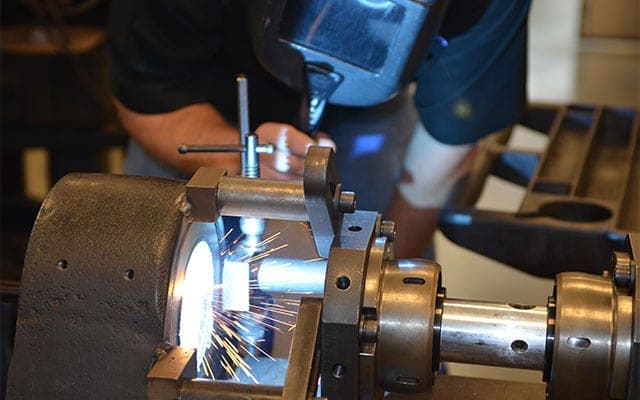

BW3000 Auto Bore Welder
automated step welding system provides you with a new degree of welding performance and precision. Your weld time will decrease dramatically while you produce precise, uniform, high-quality welds as compared to hand welding techniques.Specifications:
Axial Travel: 6 or 12 inches (152.4 or 304.8 mm)Wire Diameter Range: 0.023 – 0.045 inches (0.58 – 1.14 mm)
Step Range/Pitch: Step Range: 0.040 – 0.220 inches (1.0 – 5.6 mm)
Rotational Direction: Reversible
Auto-Skip: Auto Skip, Pie Mode & Carriage Return
Standard Torch Range: 0.50 – 54 inches (12.7 – 1371.6 mm)
BRUNSON OPTICAL ALIGNMENT SYSTEM
The Brunson Optical Alignment Systems are a simple and accurate way to align many CLIMAX machines. One model is made specifically for use with the CLIMAX BB5000 Line Boring machine, to align 2.25 inch bearings over distances from 2 to 30 ft (609.6 – 9144 mm). It can also be used to align multiple bearings over long distances. This allows compensation for bar sag when using a long bar, or eliminating a long bar while still maintaining bores in perfect alignment. The Brunson model 545 and 810 models can be used to precisely align many other CLIMAX models in the field.Questions? Talk to us today about these alignment systems and how they can help.
